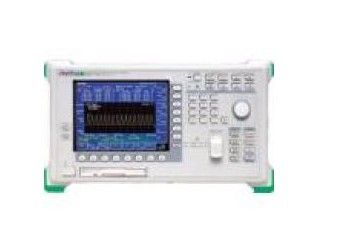

儀器名稱: MS9703B-光譜分析儀 徐經理 18912657535 儀器型號: MS9703B 儀器品牌: Anritsu 儀器指標:
Performance Characteristics of the MS9703B
Form Factor
Module (proprietary interface/bus)
Form Factor
Module (proprietary interface/bus)
Fiber Type
Singlemode
Minimum Wavelength
600 nm
Maximum Wavelength
1750 nm
Minimum Wavelength Resolution
0.1 um
Maximum Wavelength Resolution
5 um
Minimum Span
100 nm
Maximum Span
800 nm
Minimum Input Decibel
-55 dBm
Maximum Input Decibel
10 dBm
Maximum Dynamic Range
80 dB
Measurement Accuracy
1.0 dB
Minimum Sweep Time
1 s
Maximum Sweep Time
6 s
