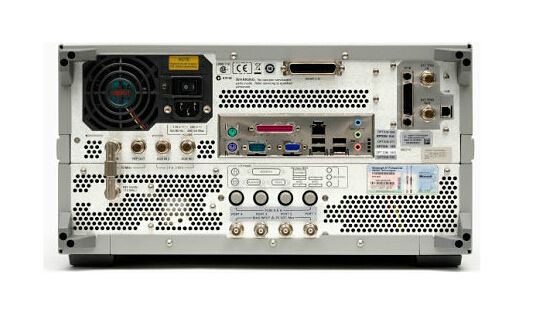

儀器名稱: Agilent E5071C-485 4-port Test Set---電話 18912657535 儀器型號: Agilent E5071C-485 儀器品牌: Agilent 儀器指標: 9 kHz 至 8.5 G? ?-4port
主要特性與技術指標
- 廣泛的動態范圍：在測試端口處具有 > 123 dB 的動態范圍（典型值）
- 測量速度：全雙端口校準時為 41 ms，1601 點
- 低跡線噪聲：70 kHz 中頻帶寬（IFBW）處為 0.004 dB rms
- 集成的 S 參數測試裝置
- 端口選項：2 端口和 4 端口
- 平衡測量能力（4 端口選件）
- 頻率選件：9 kHz 至 4.5 GHz/8.5 GHz、100 kHz 至 4.5 GHz/8.5 GHz （帶有偏置 T 型接頭）、300 kHz 至 20 GHz（帶有偏置 T 型接頭）
- 內置 Visual Basic 應用程序設計語言（VBA）
描述
E5071C 它是制造和研發工程師們測試頻率范圍在 20 GHz 以?xún)?nèi)的射頻元器件和電路的理想解決方案。
最新特性：新款 20 GHz 選件可將 E5071C ENA 系列網絡分析儀的頻率范圍擴展至 20 GHz。新款 20 GHz 選件支持雙端口（選件 2K5）和四端口（選件 4K5）兩種配置，可用于測量各種成分，例如 WLAN、WiMAX?、UWB 或任何 4G 技術中的無源器件的第三個諧波。
新特性： E5071C ENA 網絡分析儀手冊
Description
The E5071C network analyzer offers the highest RF performance and fastest speed in its class, with a wide frequency range and versatile functions. The E5071C is the ideal solution for manufacturing and R&D engineers evaluating RF components and circuits for frequency range up to 20 GHz.
What's New: The new 6.5 and 14 GHz options expand the E5071C's frequency range beyond the existing 4.5, 8.5 and 20 GHz line-up, allowing users to select the most suitable frequency option for their specific application and significantly reducing the production line's cost of test. Both the 6.5 and 14 GHz options support 2- and 4-port configurations. Such flexibility is ideal for component manufacturers, wireless designers and aerospace/defense contractors performing RF component test.
New: E5071C ENA Network Analyzers Brochure
View: ENA Series Video Demos
Discuss calibration, applications, programming topics: Network Analyzer Discussion Forum
Choose accessories: Network Analyzer Accessories
Support: ENA Series Service & Support Home Page
E5071C-008 Frequency offset mode
E5071C-010 Time domain analysis
E5071C-017 Removable hard disk drive
E5071C-019 Standard hard disk drive
E5071C-1A7 Calibration + Uncertainties + Guardbanding
E5071C-1CM Rack mount kit
E5071C-1CN Front handle kit
E5071C-1CP Rack mount and front handle kit
E5071C-1E5 High stability timebase
E5071C-240 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-245 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-260 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-265 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-285 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-2D5 2-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-2K5 2-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-440 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-445 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-460 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-465 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-480 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-485 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-4D5 4-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-790 Measurement wizard assistant software
E5071C-810 Add keyboard
E5071C-820 Add mouse
E5071C-A6J ANSI Z540-1-1994 Calibration
E5071C-TDR Enhanced Time Domain Analysis
E5071C-UNQ Standard stability timebase
