你的位置：首頁 » 產品中心 » Former(二手)儀器 » 藍牙測試儀 » R&S?CBT/CBT32 Bluetooth? Tester--手機18912657535

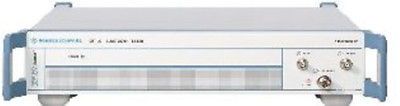

儀器名稱: R&S?CBT/CBT32 Bluetooth? Tester--手機18912657535 儀器型號: R&S?CBT32 Bluetooth? Tester 儀器品牌: Rohde & Schwarz R&S 儀器指標:
Merkmale
- Fast and highly flexible – in the lab, for R & D and
- Basic rate and enhanced data rate (EDR) RF testing
- Bluetooth® low energy (LE) RF testing
- Audio testing
- Special features
- R&S®CBTgo software for automatic testing
- Bluetooth® RF test cases
Fast and highly flexible – in the lab, for R & D and
R&S®CBT – the most versatile Bluetooth® tester for troubleshooting in the labR&S®CBT – the record holder in speed for Bluetooth® tests in productionR&S®CBT andR&S®CBT32 – the perfect combination for R & D and production
Kerndaten
- Qualified by the Bluetooth® SIG for RF measurements
- Highly flexible troubleshooting in R&D
- Very short measurement times for high throughput in production
- Integrated spectrum measurements
- Performs RF tests on Bluetooth devices compliant with Bluetooth 1.2, 2.0, 2.1, 3.0+HS and 4.0 core specifications
- R&S®CBTGo software supporting all 38 Bluetooth® RF test cases
- Cost-effective R&S®CBT32 rack version for manufacturing applications
- Multiple audio options available
- The EDR option (R&S®CBT-K55) adds a large number of EDR RF tests to the R&S®CBT Bluetooth® testers.
R&S®CBT-K57 Bluetooth® low energy option adds the capability to measure and generate Bluetooth low energy signals
| Hardware-Optionen | |||
|---|---|---|---|
| Dual-Channel Audio Generator and Analyzer for | 1170.3406.05 | ||
| Dual-Channel Audio Generator and Analyzer for | 1170.3406.02 | ||
| Digital Audio Interface for | 1170.3706.03 | ||
| Software-Optionen | |||
| Software for automated testing | |||
| A2DP Stereo Profile and SBC Codec for | 1170.4002.02 | ||
| Software option for R&S®CBT/CBT32: Handsfree and Headset Profiles | 1170.3806.02 | ||
| Software-Optionen | |||
| Enhanced Data Rate (EDR) for | 1170.3206.02 | ||
| Bluetooth® Low Energy Option | 1170.4102.02 | ||
